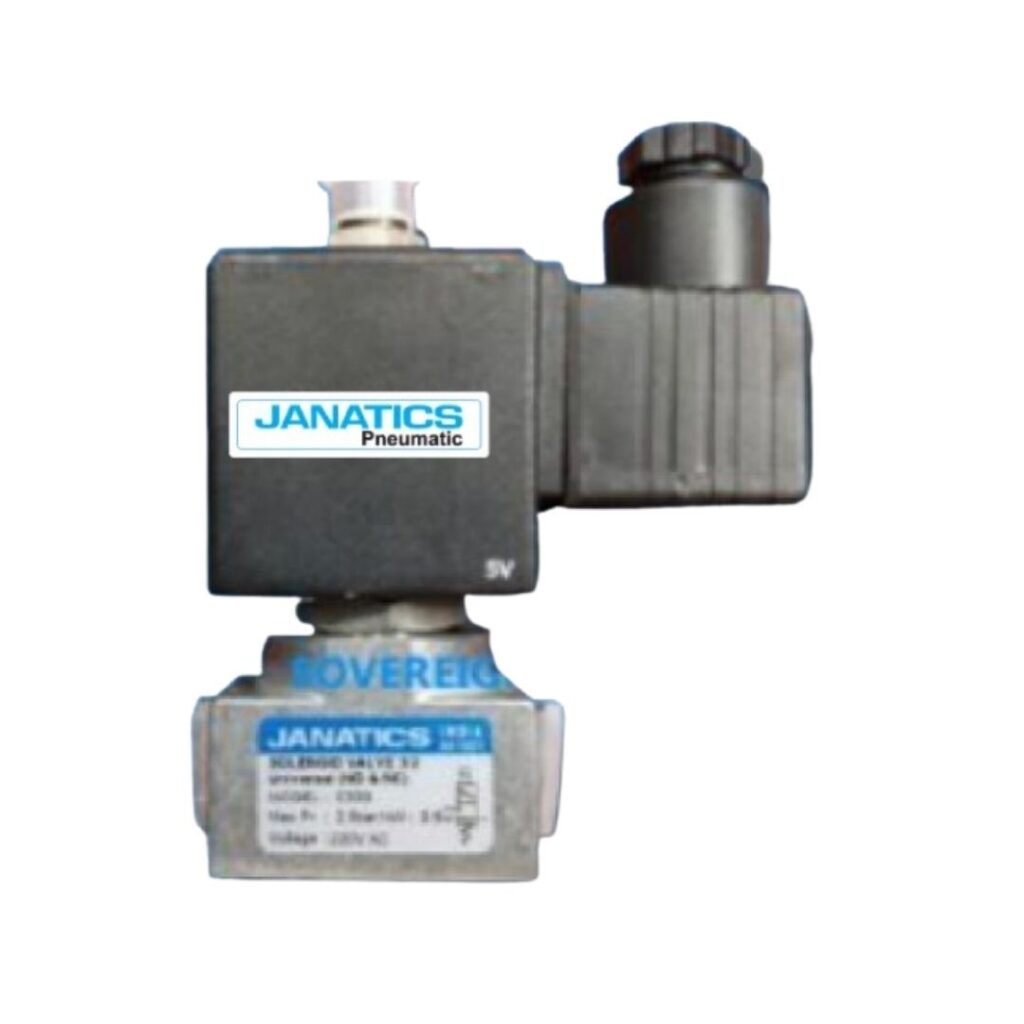

Janatics Brand E12613A SOLENOID VALVE 1/4 2/2 NC,7bar, 220V AC(DA)
Janatics E12613A Solenoid Valve: Superior Performance and Precision
Product Overview: The Janatics E12613A represents a sophisticated solenoid valve solution, specifically designed for robust and reliable operations. This 1/4 2/2 NC valve offers an operating pressure of 7bar and is powered by 220V AC (DA). Its design ensures a direct-acting, normally closed valve functionality that meets industry standards.
Distinguished Features Include:
- Versatile Coil Voltages: The product offers a comprehensive range of coil voltages to cater to varying needs.
- Continuous Duty Cycle: The Janatics E12613A is engineered for uninterrupted operations, ensuring longevity and consistent performance.
- Optimal Operating Temperature: Its design ensures a low operational temperature, adding to the efficiency and safety of the system.
- Silent Performance: The valve is designed to operate with minimal noise, ensuring a quiet working environment.
- 360° Coil Rotation: For added flexibility, the coil can be rotated a full 360°, enhancing its adaptability in different setups.
Product Description
Technical Specification
| Specification | Details |
|---|---|
| Model # | E12614 |
| Port size Inlet, Outlet | G1/4 |
| Ambient Temperature | 60°c Max. |
| Medium | Filtered compressed air |
| Orifice (NW) | 3 |
| Operating pressure (bar) | 0 - 10 bar |
| Flow rate (lpm) * | 250 |
| Electrical | |
| Coil width | 32 mm |
| Voltage (V) ± 10% AC ( 50 Hz ) | 24, 48, 110, 220 |
| Power consumption (Watts) | 6 |
| Duty cycle | Continuous |
| Class of insulation | Class F |
| Type of coil protection | IP65 |
| Materials of construction | Aluminium, Brass, Stainless steel, Nitrile |
